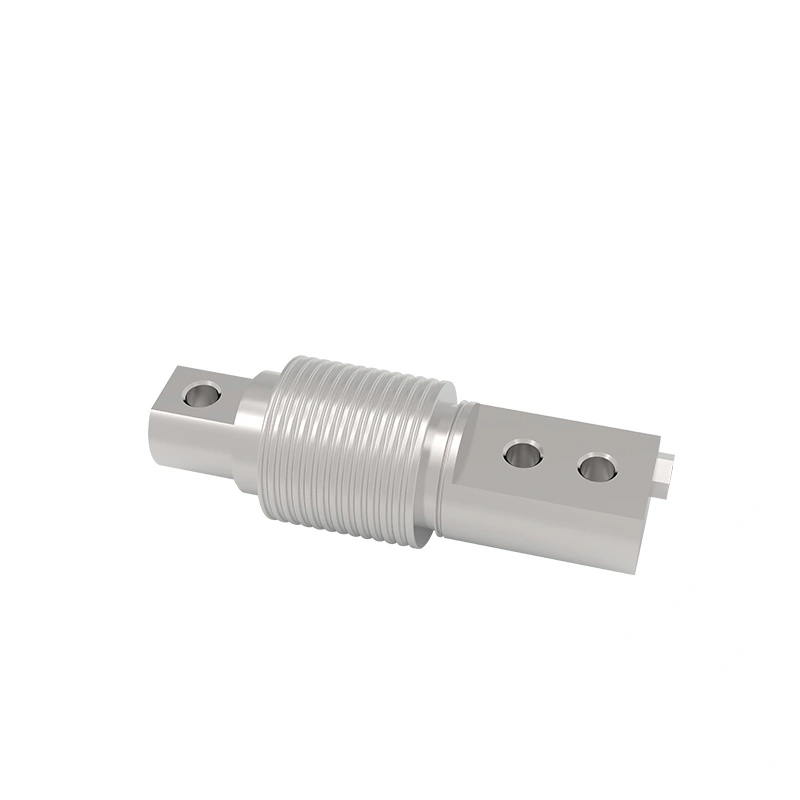

SL544 Stainless Steel Beam Load Cell
Bellow Beam Load Cell
D 42mm*L 123mm
Capacity: 5,10,20,50,75,100,200,300,500kg
如需定制量程、精度、尺寸及其他参数，请与我们联系。

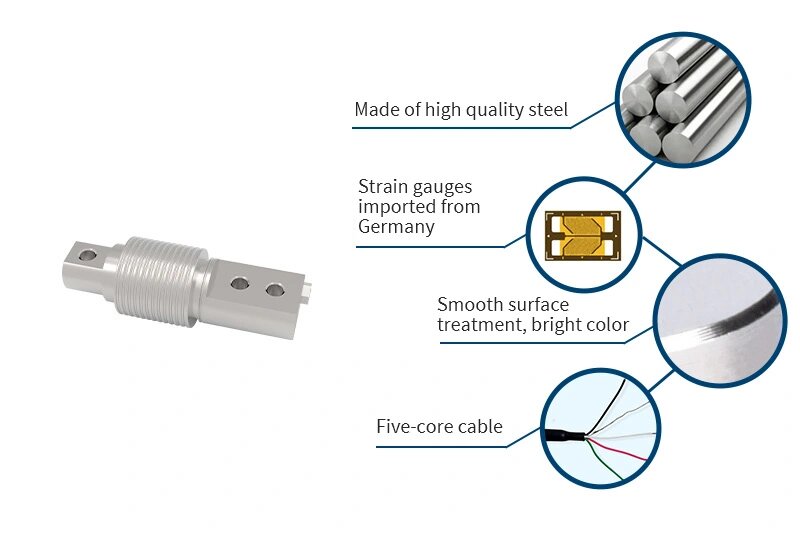

| Product FeaturesIt has good mechanical properties, such as high strength, good impact toughness, high fatigue strength, and good machining and heat treatment properties. Good elastic properties, high elastic limit, small creep, and anti-oxidation and corrosion resistance. |
Technical Specifications
| Specification | Technique |
| Capacity | 5,10,20,50,100,200,500kg |
| Rated Output | 2.0±0.02mV/V |
| Zero Balance | ±1%mV/V |
| Creep | ≤0.0166%F.S. |
| Non-Linearity | ≤0.02%F.S. |
| Hysteresis | ≤0.02%F.S. |
| Repeatability | ≤0.018%F.S. |
| Input Impedance | 387±4Ω |
| Output Impedance | 350±1Ω |
| Temp. effect on output | 0.008%F.S./10℃ |
| Temp. effect on zero | 0.012%F.S./10℃ |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
| Recommended Excitation | 5~12V |
| Maximum Excitation | 15V |
| Compensated Temp Range | -10~40℃ |
| Operating Temp Range | -20~60℃ |
| Safe Overload | 150% F.S. |
| Ultimate Overload | 200% F.S. |
| Cable Size | φ6X3m |
| Material | Stainless steel |

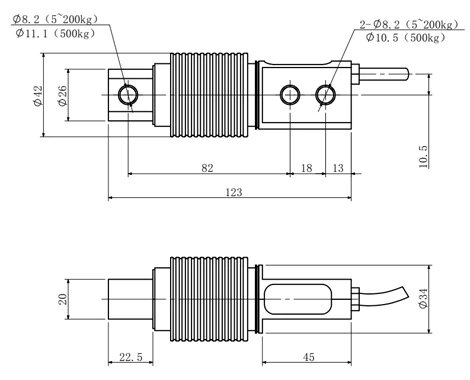

Product Dimensions
Installation size

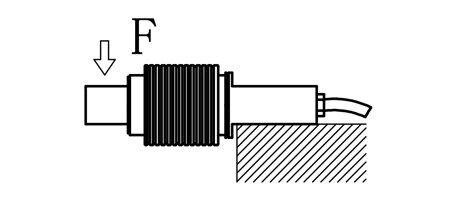

Load Direction

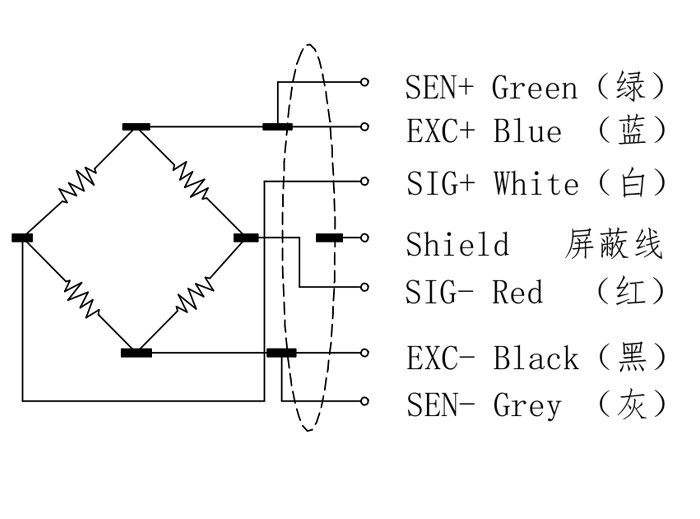

Wiring Diagram
Accurate measurement with matching display
The output of the force measuring and weighing sensor itself is an MV signal, which needs to be amplified and convertedto display numerical values or output signals to the upper computer, PLC, etc.
