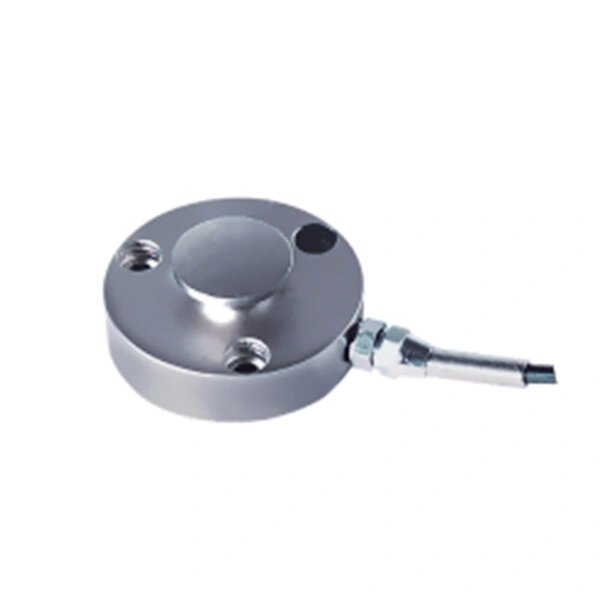

SL5136 Track Scale Shear Beam Load Cell
类别: 称重传感器/称重传感器

如需定制量程、精度、尺寸及其他参数,请与我们联系。

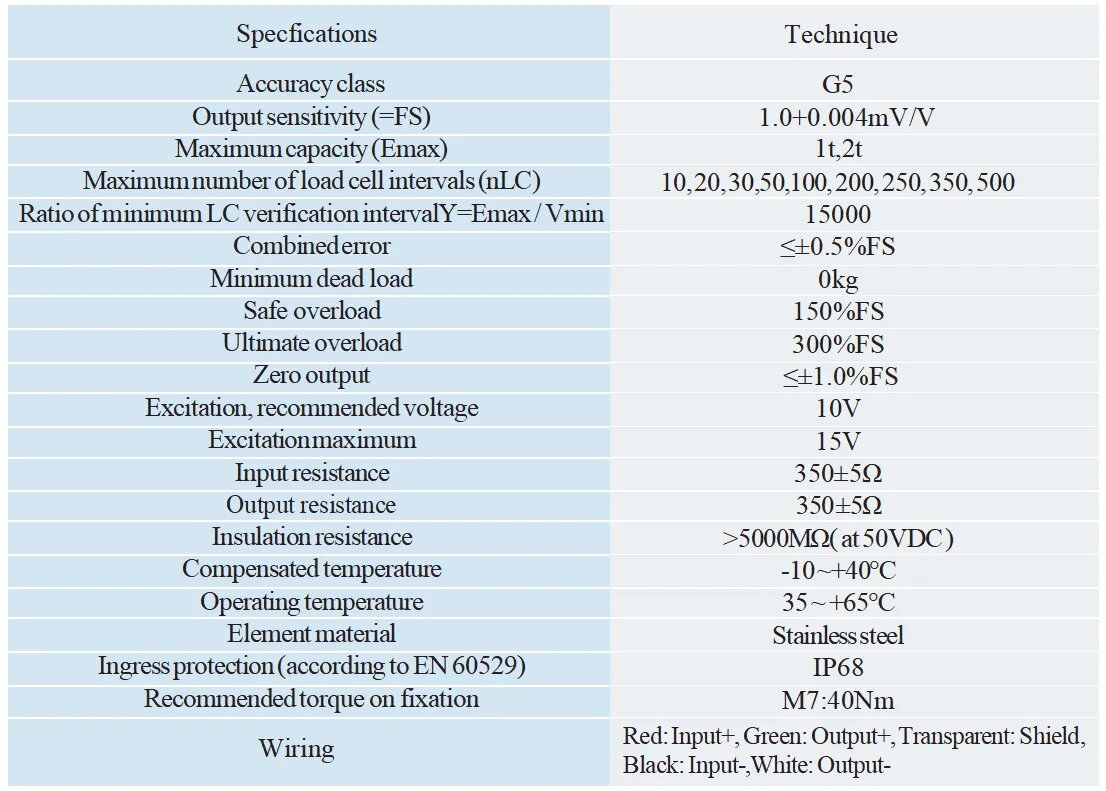

Technical Specification


1t-2t

G5

FA5136-G5-xxt-7T-S1

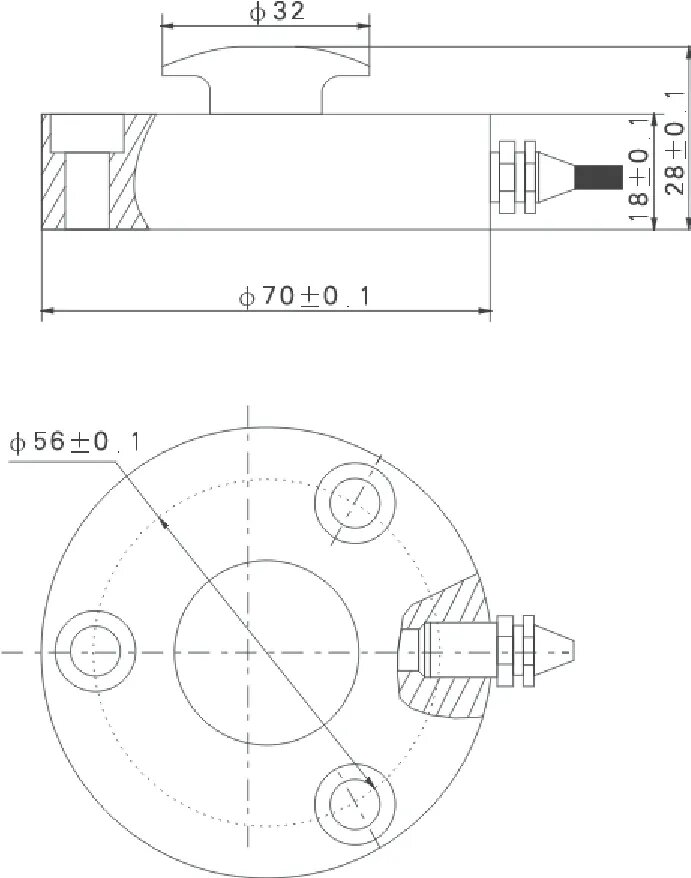

Mounting Dimensions


Accurate measurement with matching display

The output of the force measuring and weighing sensor itself is an MV signal, which needs to be amplified and convertedto display numerical values or output signals to the upper computer, PLC, etc.
